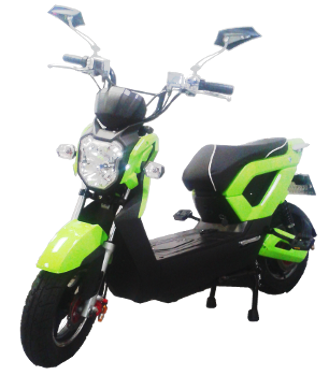

Motorino XMa in Day-glo Green
The Nimble Urban Sportster – Now with Sine-Wave controller
The Motorino XMa’s compact size and performance is equivalent to a sports version of a sedan car. It catches the eye with its sleek body and full length front suspension, an indication of it’s speed and sturdiness. The three bright color options; Lighting Yellow, Dayglo Green and Fire Engine Red make bold statements wherever you ride. With a wheel base shorter than other Motorino bikes the XMA is more maneuverable and easier to transport and store.
Its low profile seat makes it comfortable for all riders. The 60V CCT Drive System, ABS-equipped hydraulic disc brakes front and rear, provides faster acceleration and better uphill torque without compromising range. It comes standard with five high power 12V 20AH deep cycle SLA batteries placed under the floor. This low center of gravity combined with the compact wheelbase make this bike very agile and stable.
Parts and Accessories
User's Manual
Unique Electric Drive Design
As seen on all MOTORINO™ XP models, this scooter is fitted with our unique CCT drive system. This drive system provides three electronic gears allowing selection of high torque, high speed or high range depending, on the riders preference and road conditions, while maintaining a high motor efficiency. Rated at 500W continuous power, our CCT system is capable of providing peak torque comparable to that seen in 50cc gas scooters with zero emissions and all the advantages of a Motor Assisted Cycle (MAC) classification (no licence, no insurance, free parking). Read more
Hydraulic Brakes with Anti-Lock Braking System (ABS)
The dual hydraulic disk brakes are equipped with an Anti-Lock Braking System (ABS) which ensures safe and effective braking. ABS is a very important feature for scooters as it greatly reduces the possibility of brake lock up and therefore provides the rider a better chance of steering out of trouble. Read more
Regenerative Braking System
As with all MOTORINO™ XP models, this scooter also features regenerative braking; this takes energy normally wasted during braking and turns it into usable energy which is returned to the battery pack, extending your driving range and increasing the efficiency of your MOTORINO™. Regenerative braking not only provides energy to the battery, it also extends the life of your brake pads to almost double that seen on typical gas scooters.
Specifications:
Drive System
Motor: MOTORINO CCT 500W 60V high-torque three-phase AC permanent-magnet brushless
Motor Controller: MOTORINO CCT microprocessor-controlled with regenerative braking
Max torque: 72 Nm
Power System
Battery Pack
Standard Equipment: 60V 20A-h sealed lead-acid (SLA) main
Optional: 60V 26A-h Lithium Ion (LiFePO4) main
Protection
40A resettable circuit breaker, low-voltage cut-out (by controller), LiFePO4-only: internal over and under voltage cut-out.
Charging
Standard SLA: Outboard, 60V 3A Automatic Charger, 120VAC input ~7.5-hour charge time.
Optional SLA: Outboard, 60V 4A Automatic Charger, 120VAC input ~5.5-hour charge time.
Optional Lithium: Outboard, 60V 5A Automatic Charger, 120VAC input ~6-hour charge time.
12V Subsystem
Converter: DC/DC 60V>12V 10A (powers all lighting and accessory outlet).
12V Outlet: standard automotive lighter socket.
Running Gear
Brakes
Mechanical: front and rear hydraulic disk brakes with ABS (Anti-Lock Braking system).
Electric: regenerative, acting on rear wheel (via hub motor), triggered by front or rear brake actuation.
Suspension
Front: full size direct-acting twin internal spring/hydraulic shock.
Rear: trailing arm twin adjustable-preload coil-over spring/hydraulic shocks.
Tires & Wheels
Front:
Tire: 120/70-10” tubeless tubeless motorcycle grade DOT-spec.
Wheel: 3.5x12” cast alloy.
Tire: 3.5x10” tubeless motorcycle grade DOT-spec.
Wheel: 2.15x10” steel rim with integral motor, alloy side plates.
Body & Chassis
Available Colours
Neon Yellow Day-glo Green Fire Engine Red
Frame
Motorcycle-grade high-tensile steel frame.Shell
ABS composite, epoxy paint.Pedals
Platform type, socketed removable cranks.
Seat
Padded, double place, 71cm (28”) above ground.
Instruments
Digital Speedometer/Odometer, Volt Gauge, Turn Signal/High Beam Indicators.
Safety equipment
Dual rear-view mirrors, horn, dual high/low beam headlights with running light, front and rear turn signals, tail light, brake light.
Security
Built-in vibration sensitive alarm system with two remote controls, steering Lock.
Performance
Range with standard SLA battery pack: up to 50km**
Range with optional LiFePO4 battery pack: up to 75km**
** based on flat terrain, no stops, no wind and 70kg (155lb) load.
Top Speed: 32km/h (governed as per vehicle class regulation). Climbing ability:
Dimensions and Weights
Weight (without battery pack): 50kg (154lb).
Standard lead-acid (SLA) 60V 20A-h battery pack: 27kg (60lb).
Optional LiFePO4 (lithium) 60V 26A-h battery pack: 14kg (31lb).
Wheelbase: 114cm (45”).
Overall length: 162cm (64”).
Maximum payload capacity, including rider(s): 135 kg (300 lb).
Included Accessories
12V electric tire inflator, with pressure gauge.
Riding rain cape.
Full-scooter poncho with hood and window for head light.
Scooter parking cover.
Tubeless tire repair kit.
Optional Accessories
Battery desulphator.
Helmet.
Windshield.
Wheel Lock.
Chain Lock.
Goggles.
Hand warmers.
Saddle bags.
Alarm with 150m range transmitter.
